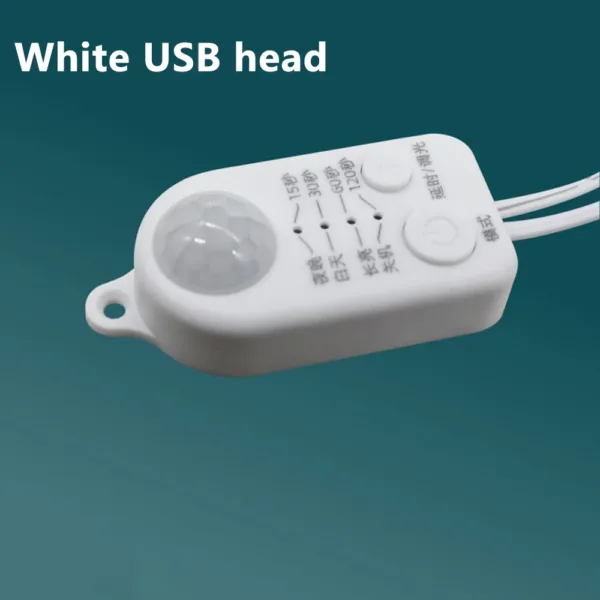

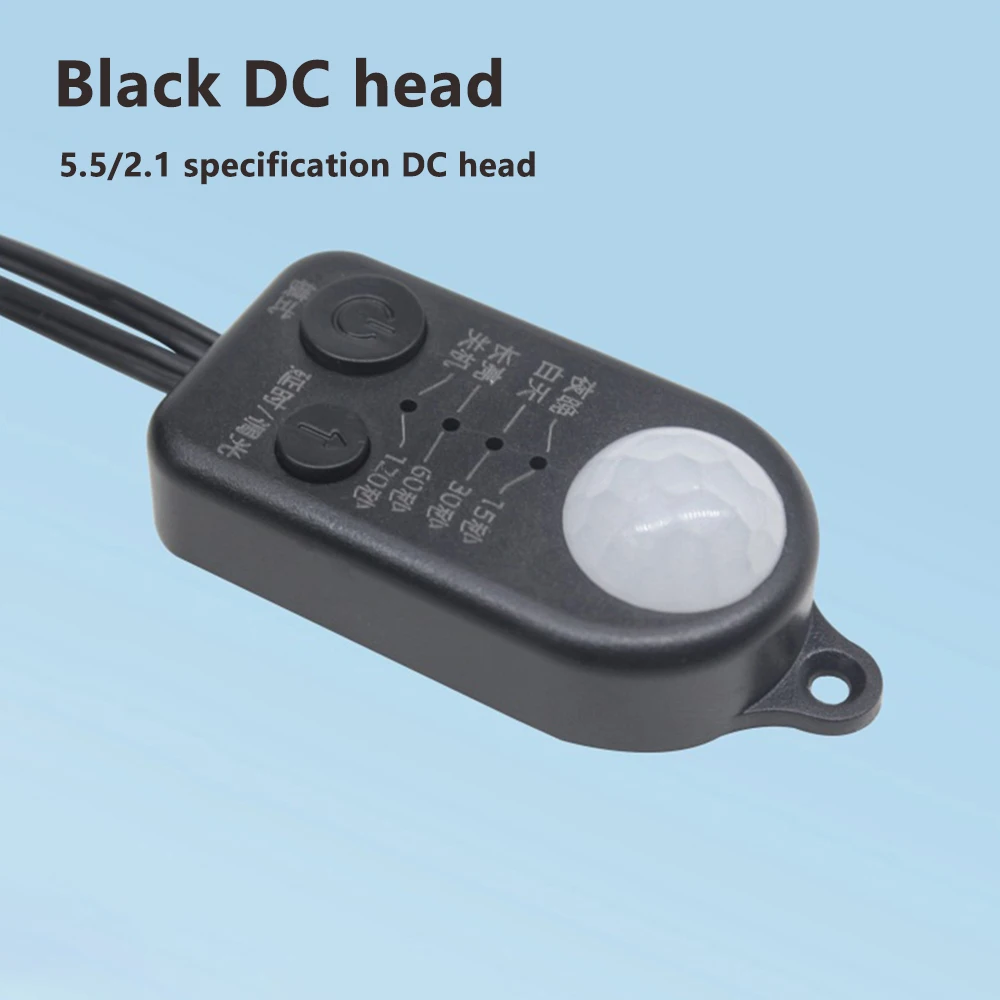

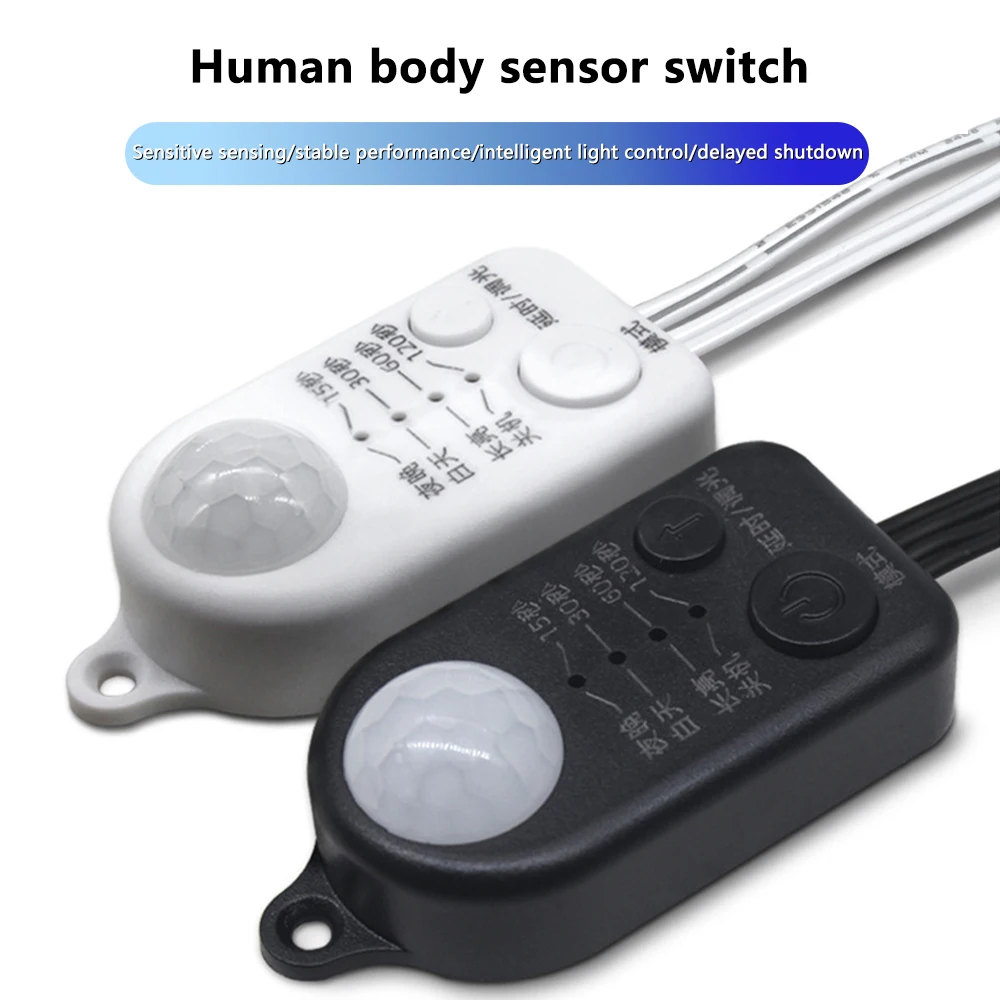

DC 5V-24V USB DC Body Infrared PIR Motion Sensor Switch Human Motion Sensor Detector Switch For LED Light Strip

Features:
1.With LED work indicator light
2.High sensitivity and long distance
3.With photosensitivity, not sensitive during the day, sensitive at night
4.4 adjustments: brightness adjustable, delay adjustable, light control adjustable, and infinite dimming
5.Wide range of use: suitable for places such as kitchens, bathrooms, bedrooms, and hallways

Parameters:
Product model: TDL-2045
Working voltage: DC5V-24V (wide voltage)
Static current:<5mA
Output current: 3A
Delay time: 15 seconds -30 seconds -60 seconds -120 seconds
Brightness adjustment: 10% -100% (infinite brightness adjustment)
Induction method: passive infrared induction
Induction angle: 120 °
Sensing distance: 5m
Working temperature: -10 ° C~+35 ° C
Trigger mode: continuous trigger
Detection angle: 120 °
Detection distance: diameter 5m
Installation height: 2.8m
Size: 61.5 * 30 * 19mm

Package include:
Inductive switch * 1
Back glue * 1
